We supply the full range of Ortovox AVABAG Airbag systems, Ortovox has designed the removable Avabags units to be combined with a highly functional avabag backpack to create a travel-friendly system.
Easily move your avabag unit from one avabag backpack to another, We provide the following avabag backpack sizes and models :

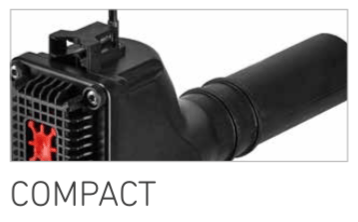

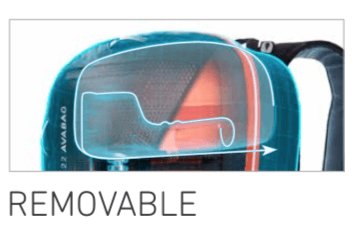

Ortovox offer innovative airbag processing technology, the avabag systems are the lightest airbag system currently operative in the world, weighing in at only 640g. Ortovox offers a compact, effective and removable system. Ortovox offers you the facility to do multiple tests and practises without using a canister.
Ortovox stands for Maximum protection, simplicity, reliability, In 2013 Ortovox integrated the first removable ABS MASS system into the Ortovox airbag backpacks
In 2016, the next revolution arrived, the new lightweight and compact Avabag airbag system, the avabag systems are the lightest airbag currently operative in the world, weighing in at only 640g.
Made from high-quality materials and innovative design, the Ortovox Avabag is a safe and reliable option when skiing in deep powder terrain.
Avabag is an Extremely Light Airbag System. Thanks to its Innovative Airbag Processing Technology whereby the material is processed for the first time ever without Sewing or additional Sealing.
Thanks to the drastically Reduced Venturi Unit Ortovox have managed to achieve a sensation system weight of 690g. In this sense, simplicity means a reduction in components, lower weight and the high level of reliability.
The activation unit sits inside the venturi, creating a Completely Sealed, Robust System that functions without electricity. Dirt, ice and corrosion can all be excluded.
The Avabag unit is Quick and Easy To Upgrade and is Compatible with all of the Ortovox Avabag Backpacks
When wearing your Ortovox AVABAG Backpack System you must make sure that all of your straps are securely fastened and the Activation handle is adjusted to the correct height.
1. Correctly Installing the Avabag system: Ensure that the AVABAG system has been installed correctly. The activation cable with silver ball must be able to pass through the feed channel with no restrictions and the AVABAG balloon must be correctly folded.
2. Correctly Mounting the Activation Handle: The Silver ball on the activation cable must be easily visible in one of the two settings, so L or S. The position slider must be firmly attached to the activation handle. The Guide bar on the activation handle must be inserted into the feed channel for appropriate setting.
Short Grip Length (S)
Long Grip Length (L)
3. Checking the Activation Mechanism: Insert the unthreaded side (smooth surface) of the AVABAG re-arming tool without force into the cartridge bushing if you can insert the re-arming tool right up to the stop. The AVABAG system is armed and ready to activate. if the re-arming tool cannot be completely inserted, you must re-arm the system.
4. Correctly Attaching the Avabag Cartridge: Screw the AVABAG cartridge into the cartridge bushing right up to the stop so that the sealing ring can no longer be seen on the AVABAG cartridge, Fasten the backpack orange cartridge clip to keep in place.
5. How To Wear The Backpack Correctly: Fasten the leg safety. to do this, thread the hip strap through the coloured loop on the leg safety strap. Fasten both buckles on the hip and chest straps one after the other and ensure that they are properly locked into place.
6. Activating The AVABAG Avalanche Unit: In the case of an avalanche, pull abruptly and as firmly as possible on the activation handle to activate the avabag avalanche airbag and inflate the avabag balloon!

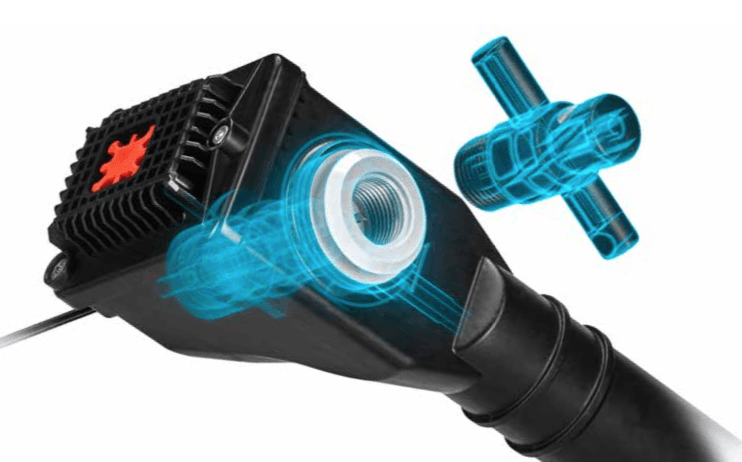

Different to the ABS airbags and other gas powdered airbags, the Avabag System allows you to Test as Much As You Like and As Often As You Like without an installed cartridge, This will ensure that the wearer is able to react appropriately in a real avalanche situation. The Avabag system can then be re-activated by using the Rearming Tool as seen in the diagram below :
...To Avoid Burial Despite Airbag
A Canadian avalanche researcher Pascal Haegeli analyzed 106 avalanche accidents that occured with airbags users. The result was frightening - One in eight airbag users (12%) did not manage to activate the system during an avalanche, its important to regularly test training.
To determine your back length, use a tape measure to measure yourself from the top of your hip bone to the very top of your back just before the neck.
The Tour Series was designed for ski tours lasting several days and demanding skiing excursions, Placing huge emphasis on Safety.
Ortovox has developed a technical, ultralight avalanche airbag backpack to match an extremely light avabag system
The Tour series packs offer packs from 22 litres up to 40 litres, with lots of inner storage pockets it provides enough storage space for tours lasting serval days. Sleeping mats and bags can be quickly attached to the outside using the additional gear loops.
To achieve the low overall weight in the Ascent line Ortovox have used an extremely light yet scruff resistant materials and concentrate on the most important features such as Diagonal Ski fastenings, Ice axe holder and rope fasteners.
A 3D foamed back system which provides the high wear comfort for essential longer tours!
Please see the Ortovox AVABAG Tour Series Features Below (Ortovox Ascent 40 AVABAG Unit):
Nylon 420D Oxford HD
Ortovox Most Durable material. It offers Extremely High Scruff Resistance and is therefore ideal for protecting against sharp edges. The PU coating on the inside also makes the fabric waterproof.
Nylon 100D Robic Ripstop
Extremely lightweight and abrasion-resistant at the same time. It is the Lightest Material Ortovox have ever used for there backpacks. Thanks to a special pretreatment, the yarn and therefore the entire fabric are Very Sturdy. The PU coating on the inside makes the fabric Waterproof.
Ortovox Ascent 22 AVABAG - REGULAR (42-50cm)
Ortovox Ascent 28 S AVABAG - SHORT (36-44cm)
Ortovox Ascent 30 AVABAG - REGULAR (42-50cm)
Ortovox Ascent 38 S AVABAG - SHORT (36-44cm)
Ortovox Ascent 40 AVABAG - REGULAR (42-50cm)
By far the Most Popular Out Of The Ortovox Avabag Backpacks, the Free Ride Series is an Extremely Light Airbag System which was developed for free Riders in mind, offering a High Level Of Protection and a revdelopment of the SPS flex Back Protector which combines the back system and protector into a Flexible Unit.
Built from Eight-Pads which remain comfortably flexible even in the cold, the TUV Certified protector adapts to the body and absorbs impacts through the immediate hardening of the foam.
Broad hip belt and Free Riders Silhouette which integrates with the body, this ensures a Secure Fit on the back.
Added extra safety compartments and tried and tested Free Ride features come into action for the Free Rider packs.
Also added are an optimised helmet and snowboard holder.
Please see the Ortovox AVABAG Free Ride Series Features Below (Ortovox Free Rider 22 AVABAG):

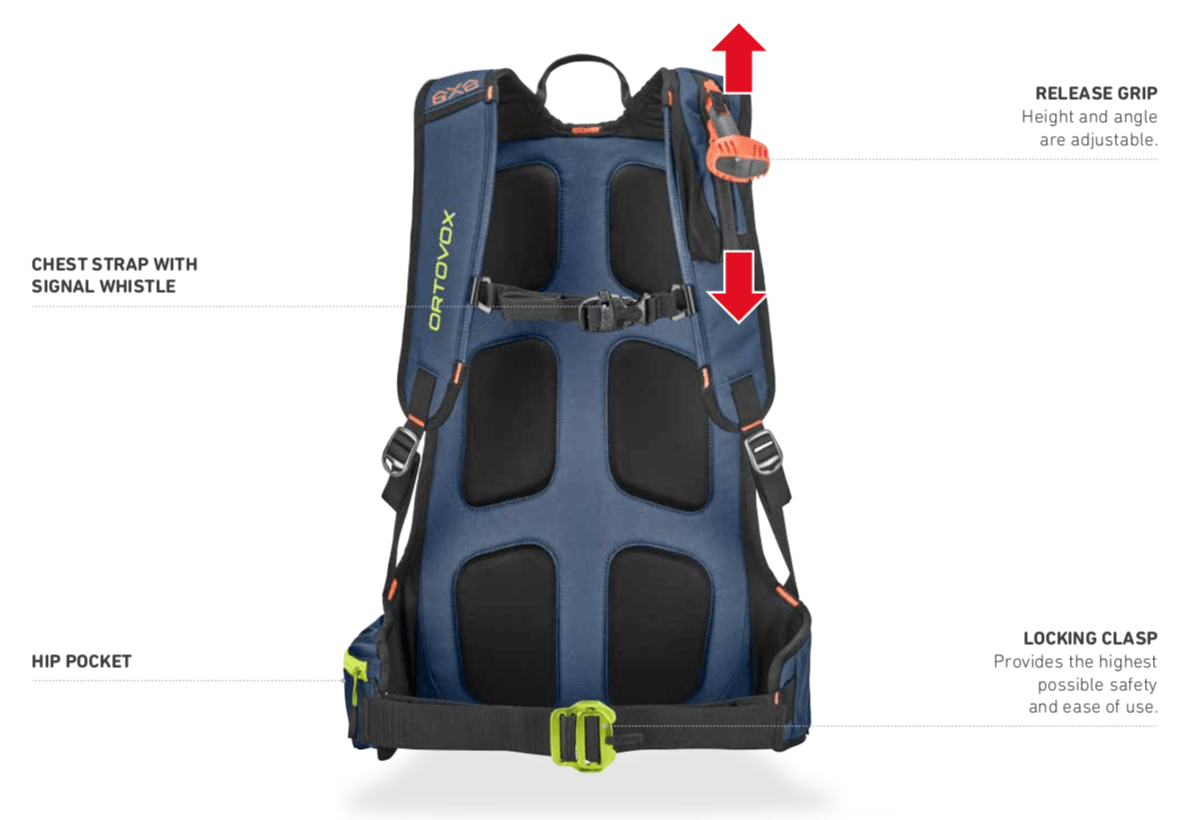

Ortovox AVABAG Free Ride Series Back View Features:
Nylon 420D Ballshadow
The distinctive ripstop interlocking thread pattern and a PU coating for Greater Water Resistance result in Higher Abrasion Protection and Tear Strength. From a Visual perspective, the releif-like surface structure has a very technical appearance. it is a design that doesn't compromise longevity.
Ortovox Free Rider 20 S AVABAG - SHORT (36-44cm)
Ortovox Free Rider 22 AVABAG - REGULAR (42-50cm)
New to the Cross Rider series is the Cross Rider 18 Litre AVABAG, made for climbing a few extra meters to get the best Powder Descents, It is exactly this type of playground that the cross rider series was designed for.
A new member of the avabag family offers the Lightest Descent-Oriented Avalanche Airbag.
The Close Fit and foamed back means it sits perfectly against the body and ensures Maximum Freedom Of Movement, on any lengthy descent in deep fresh snow.
The Cross Rider series features ski and snowboard fastening, ice axe and hiking pole fasteners.
Quick access to the main compartment or the separate safety compartment means you are ready for twisting and turning and spraying deep powder.
Please see the Ortovox AVABAG Cross Rider Series Features Below (Ortovox Cross Rider 18 AVABAG):
Ortovox Avabag Cross Rider Series Back View Features:
Ortovox Cross Rider 18 AVABAG - REGULAR (42-50cm)
