Pieps Micro BT Sensor

Pieps Micro BT Sensor

The Pieps Micro BT sensor is the most intuitive beacon that switches automatically from send mode to search mode. the Micro BT offers Wireless Device management with updates via the Pieps app using Bluetooth. You can update the Jetforce Airbags via the same app.

Smart Sensor  Technology switches automatically from send to search mode.

Vibration at initial signal detection. This lets rescuers focus on the visual surface search during the signal search.

Pieps Micro BT Sensor Videos

Pieps Micro BT Sensor

Pieps Beacons

What's included

• Pieps Micro BT Sensor Beacon
• Carrying Harness
• Instructions (Multiple Languages)

Pieps Micro BT Sensor Features:

• Maximum Circular Receiving Range due to the PIEPS 3-antenna-system.
• Extensive Self Check: Review of all relevant hardware and software elements as well as showing the current software version.

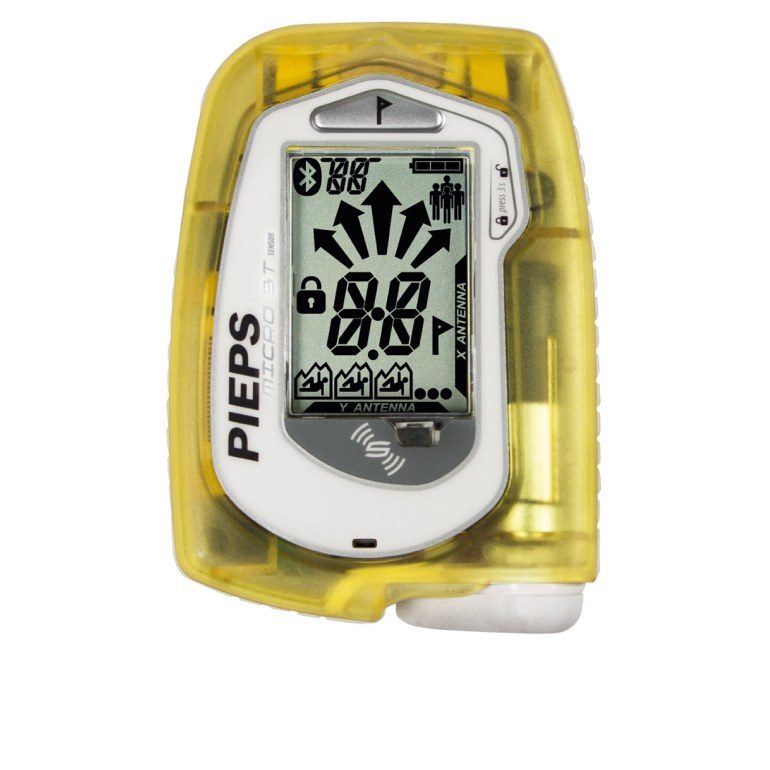

• Big Display for easy readability.
• Perfect Mark-performance due to exact signal processing without any performance losses.
• Pieps Interference Protection The influence of external interferences is eliminated or reduced to a minimum:
  Protection in send mode with Auto-Antenna-Switch: If the transmitting antenna is impacted by external interference, the other antenna would take over the transmit function.
  Protection in search mode with Signal Verification: Only a verified 457kHz signal is indicated.
• iProbe Support: The PIEPS MICRO BT sensor can be temporarily deactivated using the smart iPROBE. The receiving beacon automatically receives the next strongest signal.
• Auto-Search-to-Send:  This function automatically switches the PIEPS MICRO BT sensor from search mode to transmit mode, if the beacon is not moving for a certain time (in case of burial).
• Group Check: Reviews the activity and transmission parameters of the partner device. PIEPS recommends to perform a group check before each tour.

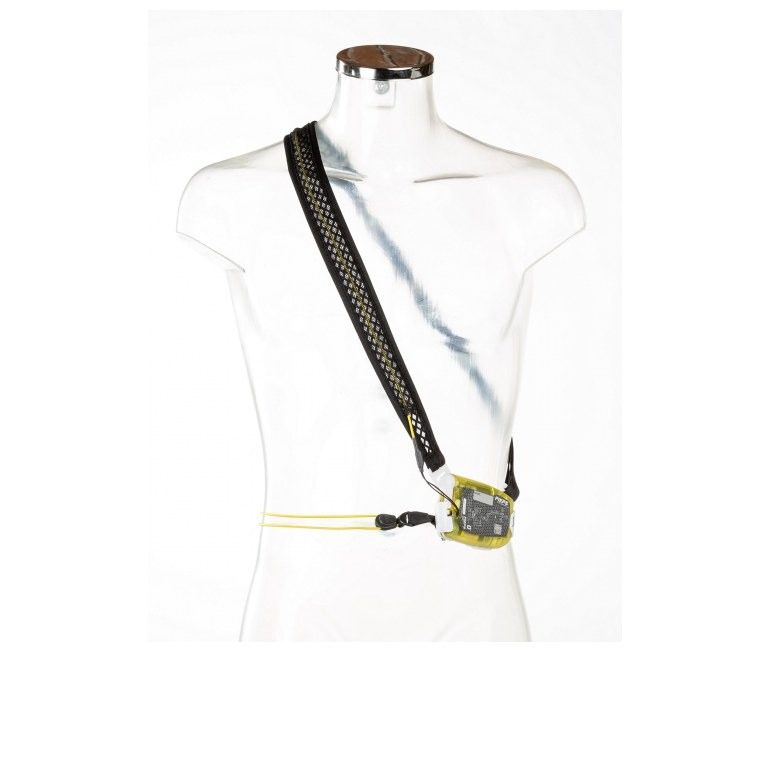

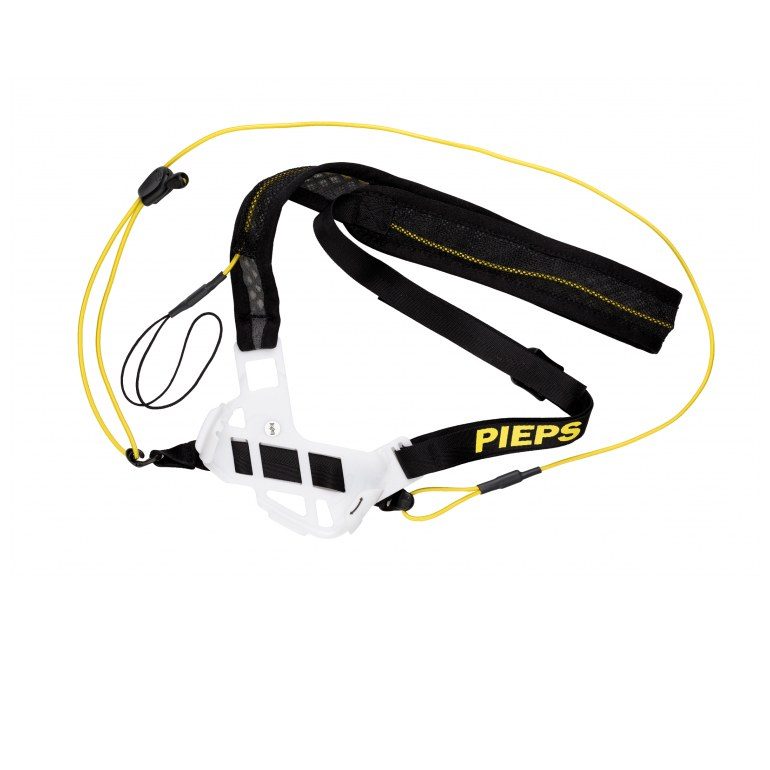

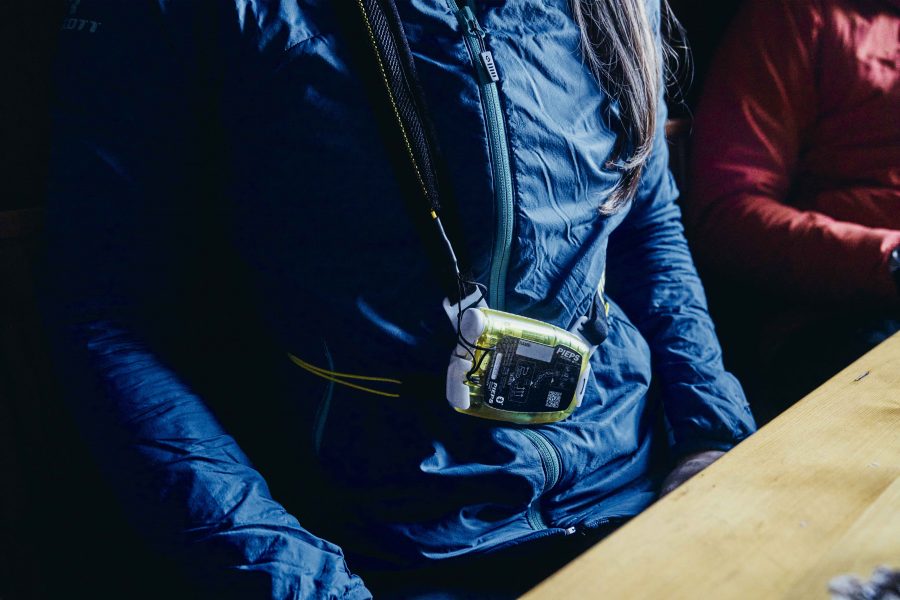

• Carrying Harness: Hard case, Water-repellent materials, Compact hard case so the sensor is covered reliably

Pieps Micro BT Sensor Tech Spec:

• Maximum Range: 50 m
• Search Strip Width: 50 m
• Dimenstions (LxWxH): 106 x 74 x 20 mm
• Weight Incl. batteries: 150 g
• Power Supply: 1 Battery (AA)
• Battery Lifetime (min h): 200
• Transmission frequency (kHz, according to EN300718: 457
• Temperature Range: -20°C to +45°C
• Firmware Version: v3
• Warranty: 3 years
