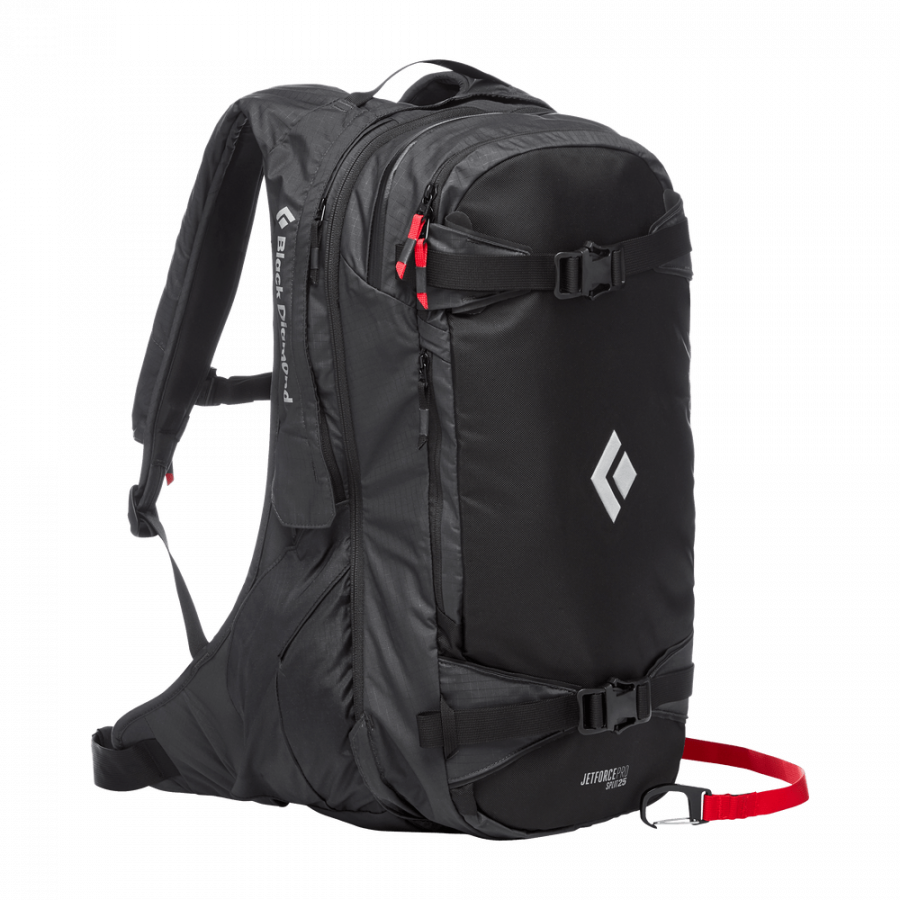

New to season 19/20, the Black Diamond Jetforce Pro Split 25 Airbag is the next evolution in Jetforce Technology. The Pro Split 25 is designed for split boarding the backcountry, smaller and lighter version than the older Halo series.
This battery-powered system is capable of inflating the pack's airbag in just 3.5 seconds, and after 3 minutes the 200l bags then deflate to create an air pocket to aid the rescue. Another advantage of this system is that it is reusable without requiring any replacement parts or canisters and the airbags are easy to pack back inside the bags.
In addition to the Jetforce Technology, this Black Diamond Jetforce Pro Split 25 Airbag comes with 25 Litres of packable space, access to the main compartment through the front of your booster pack, and a dedicated avy-tools pocket. As well as providing an added margin of safety, the Pro 25 Jetforce is a practical, hardwearing and a hassle-free from canisters.

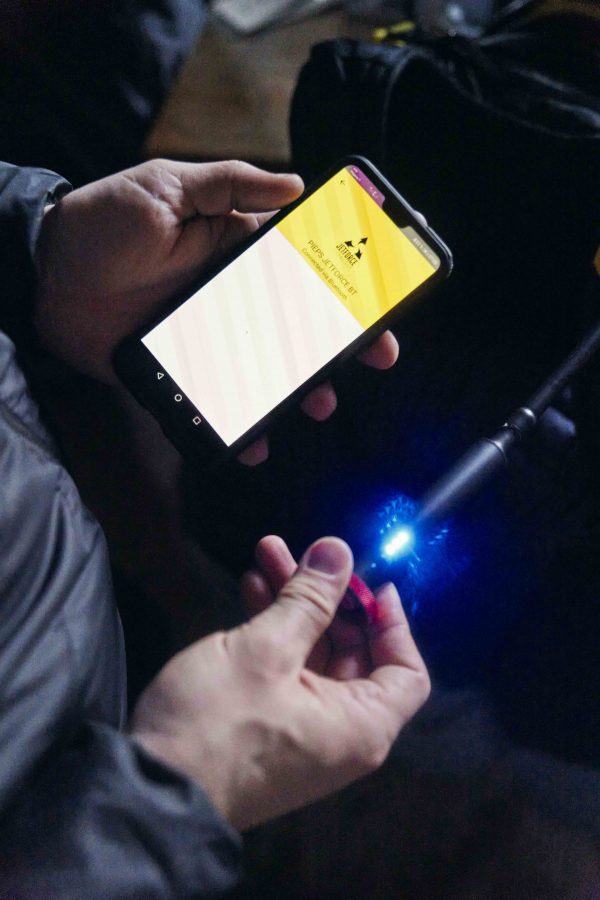

Update your firmware via a simple Bluetooth app.

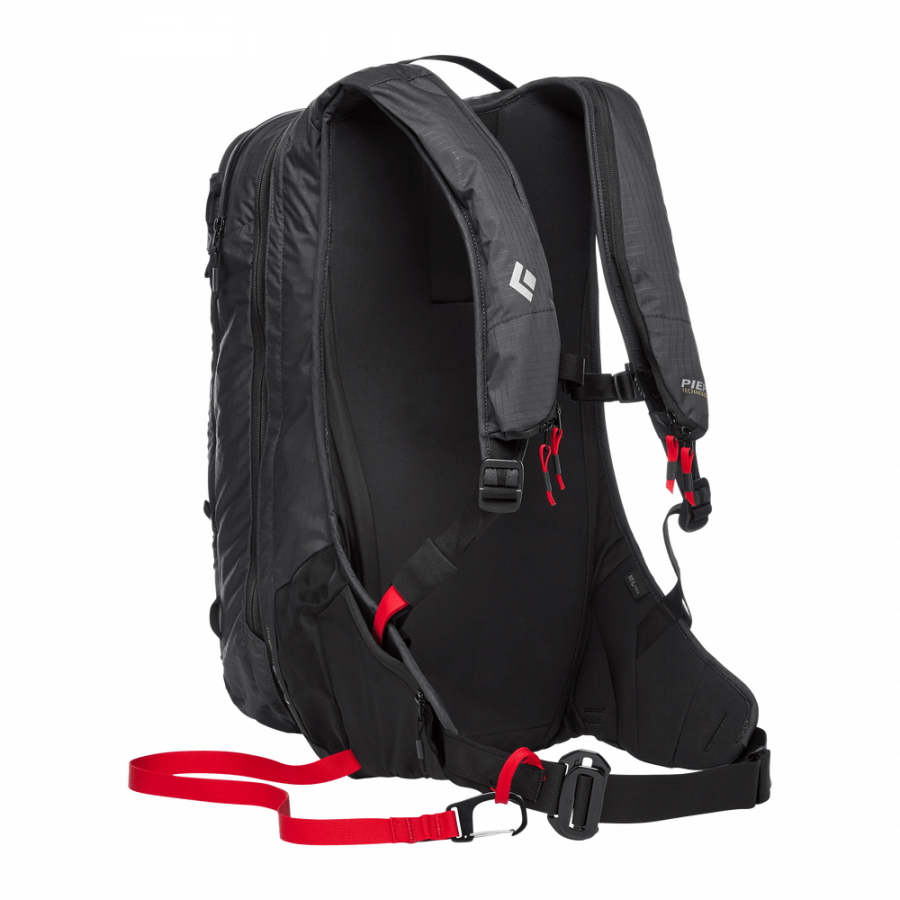

The Black Diamond Jetforce Pro Split 25 Airbag is built to store your equipment for day-long outings or couloir missions and provides a truly innovative addition to your avalanche tool kit. The reACTIV suspension with SwingArm™ shoulder straps and ski carry feature means that this pack is both as comfortable as it is practical.

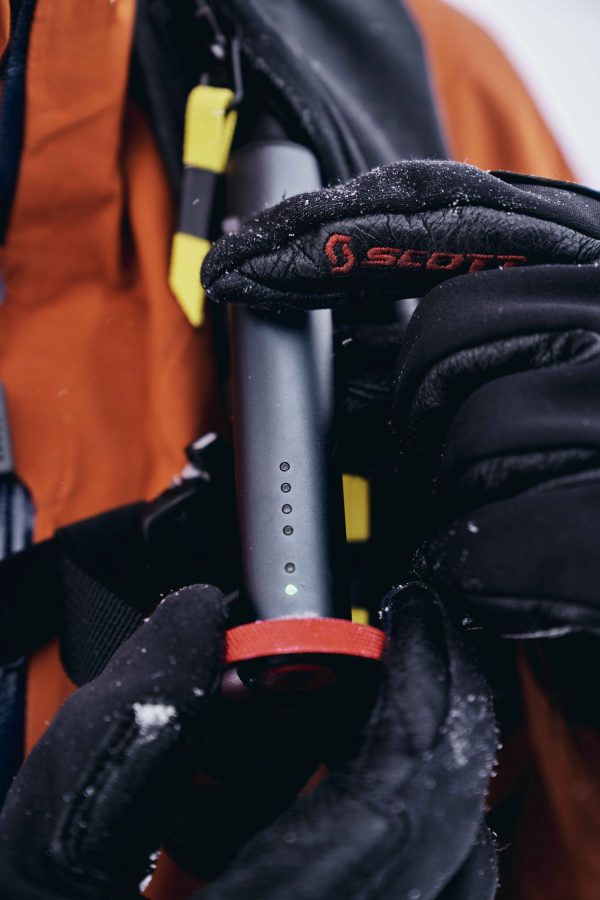

When wearing your Black Diamond Jetforce Pro Split 25 Airbag, make sure all straps are securely fastened, the system is successfully armed and the LED is showing a pulsing green light. The airbag can now be deployed.
Grasp the Deployment Handle and firmly pull downwards to open the Release Flap that covers the airbag and turn the fan on.
The airbag will begin to Deploy Immediately. The fan will run at Full Power for 9 Seconds, followed by lower speed operation and Short Refilling Bursts for 3 minutes.
The airbag will deflate after 3 minutes and then automatically switch back to armed mode.
To interrupt the inflation/deflation process after the initial 9 second deployment period and return to armed mode, Press and hold the red power button for approximately 5 seconds.
This Black Diamond Pro Split 25 also features a Dedicated avy tools pocket, Combine the this airbag with the Mammut Barryvox Package, This includes the Barryvox Transceiver, Alugator Ride Shovel and Mammut Light 240 Probe.
Up to 25 Litres of Packable Space
Access the main compartment with ease through the front booster pack, allowing access even when skis are attached
Tuck-Away Diagonal Ski Carry (Airbag can still be inflated if skis are still attached to the bag)
HiLo helmet holder carries equipment at your convenience without blocking the deployable Airbag.
Hipbelt stash pockets for extra storage and accessories
Ice Axe or Pole Attachment
The Black Diamond Jetforce Pro Split 25 Airbag is a very comfortable and durable pack, with newly designed features such as leg straps, weight reduction and a smaller and lighter approach to the Jetforce backpacks.
To get an accurate measure of your back size you will need someone to measure from your lower back to just below the neck where the spine has a lump; which can often be seen or felt. Use the size guide image on the product to calculate your size.
Volume: 25 Litres
A giant leap for airbag technology, Jetforce provides an added margin of safety to your avalanche tool kit.
The Jetforce is the first Avalanche Safety technology to use battery-powered jet-fan inflation. This is a breakthrough system that draws air from the unlimited source of the atmosphere.
The Jetforce avalanche airbag system is dramatically improved for ease of use and performance over traditional compressed gas cylinder systems.
The Battery-Powered jet-fan inflates the Airbag in 3.5 seconds, then the 200L Airbag automatically deflates after 3 minutes to create an air pocket to aid in extraction.
Jetforce’s repackable airbag and fully rechargeable electronics system provide zero-cost user practice and travel-friendly performance.
Easy air travel, little to no restrictions on the batteries as they’re no different than laptop batteries.
As many practice deployments as you desire, battery good for 1 to 6 full inflations depending on temperature and age, the battery is rechargeable.
No hassle with canisters.
Slightly lighter in weight than compressed gas offerings.
Automatic Deflation Cycle can possibly create airspace around the head in the event of a burial.
Specific to Black Diamond & Pieps design, airbag stuff-stows loosely after use, pack it in minutes with no folding necessary.
The fan is set to cycle on periodically during 3 minute inflation period per CE standards, this can overcome up to 7-inch tear in the fabric.
Fan timing is controlled by the electronics, here is how it cycles:
0-9 seconds - Mandatory Fill: During the first 3.5 seconds, the airbag fills 100%. For the next 5.5 seconds, the system continues to run at full speed for safety redundancy.
10-60 seconds - Active Performance: The system pulses between full speed and 50% speed. Since this is the most likely time to be carried by the avalanche, it is most critical to maintain full volume and recover from any possible tears.
61-180 seconds - Volume Maintenance: The system has 20s stand-by intervals between 3s full speed refilling pulses. The goal is to maintain the volume to aid in visibility and meet CE timing requirements.
181 seconds - Active Deflation: After 3 total minutes, the bag will automatically deflate. If partially or completely buried, this has the potential to create a large volume of air for breathing and/or extraction. If unburied, this simply helps repack the airbag quicker.
Gear Capacity (L)
Gear Capacity (cu. in.)
Fits Waist/Hips (inches)
Fits Torso (inches)
Number of Exterior Pockets
How fast does the bag inflate?
3.5 seconds for initial fill, which is as fast (or faster) than any cylinder system.
Where does the air pull from?
There are three locations that allow air to enter the fan.
Having three intake locations allows the system to get ample amounts of air despite any impediments like snow, clothing, or equipment.
Will the airbag be able to deploy from within the snow?
Through our experience with the AvaLung, we have done years of research to prove that the snow pack maintains large amounts of available air. We have designed the system to pull air from many locations around the pack, thereby reducing the concern that any one of these spaces could be fully blocked. Also, the fan runs about 3 times longer than needed to actually fill the bag, thereby allowing for the reduced efficiency when fully buried.
How fast is the fan?
What type of battery is used? And is there a temperature effect on the battery?
The JetForce battery is similar to the battery found in most laptop computers: a Lithium Ion. Our battery differs in one key aspect: it was engineered specifically to operate at very cold temperatures (-30C). The battery is sized to operate once at very cold temperatures even at the low end of charge levels.
How long does it take to charge the battery?
A fully depleted battery will need 8 hours for a full charge. As with all Lithium batteries, for the best battery life expectancy, we recommend the battery is maintained closer to full charge.
Is the Airbag mechanism interchangeable between Backpacks ?
The jet force is built into the backpack and is not interchangeable like the ABS system.
How long does a battery charge last?
A fully charged battery can last up to six weeks depending on use.
Can the system be turned off during deployment?
Yes, but only by intentionally pressing the power switch for 4 secs and only after the mandatory initial inflation phase.
Why does the JetForce system turn on and off during deployment?
The system cycles through multiple phases throughout deployment. Each phase is specifically tuned to optimize safety and battery life.
0-9 secs: Mandatory Fill During the first 3.5 seconds, the airbag fills 100%. For the next 5.5 seconds, the system continues to run at full speed for safety redundancy.
10-60 secs: Active Slide Performance The system pulses between full speed and 50% speed. Since this is the most likely time to be carried by the avalanche, it is most critical to maintain full volume and recover from any possible tears.
61-180 secs: Volume Maintenance The system has 20s stand-by intervals between 3s full speed refilling pulses. The goal is to maintain the volume to aide in visibility and meet CE timing requirements.
181 sec: Active Deflation After 3 total minutes, the bag will automatically deflate. If partially or completely buried, this has the potential to create a large volume of air for breathing and/or extraction. If unburied, this simply helps repack the airbag quicker.
All existing airbags only work well in ONE scenario- if you are actively churned by an avalanche. We wanted to create something that offered the potential for increased safety if the slide came down from above or if the victim got caught in a terrain trap. By deflating the airbag, JetForce has the potential to create a large air pocket in a complete burial scenario.
By waiting until 3 minutes before deflation it allows the practicing user an opportunity to shut the system off before deflation in order to maintain battery life. In the event of a full burial, the time allows for the snow to set-up firmly before creating a pocket.
Why are you using a larger airbag?
What effect does this system have on beacons?
There is a very minimal amount of interference with beacons, but only when the fan is actually running and only within very short range.
What about airline travel?
Our lithium Ion battery is very similar to those used in most laptop computers and therefore follows the same general airline regulations. [Our experience has shown that the pack can be either checked or carried-on, but any extra batteries MUST be carried on.]
Why didn’t you incorporate the AvaLung?
While we still feel that the AvaLung is a great technology and could certainly aide airbag users, we were more concerned that having two devices on the pack’s shoulder straps would only confuse an unpracticed user. If someone wants to have both, we already offer the AvaLung II sling, which can be used with any backpack. Also, the automatic deflation has the potential to create the same amount of breathable air as the AvaLung.
What’s the status with field testing?
We have been testing this system for the last 3 years (lab & field testing). Like all BD/Pieps product, before anything is made available to the public it will have undergone rigorous testing in the lab, then in the field with in-house users, and then is released to out-of-house professionals and athletes for more field use. Intensive out-of-house field testing phase will start in earnest this winter.
