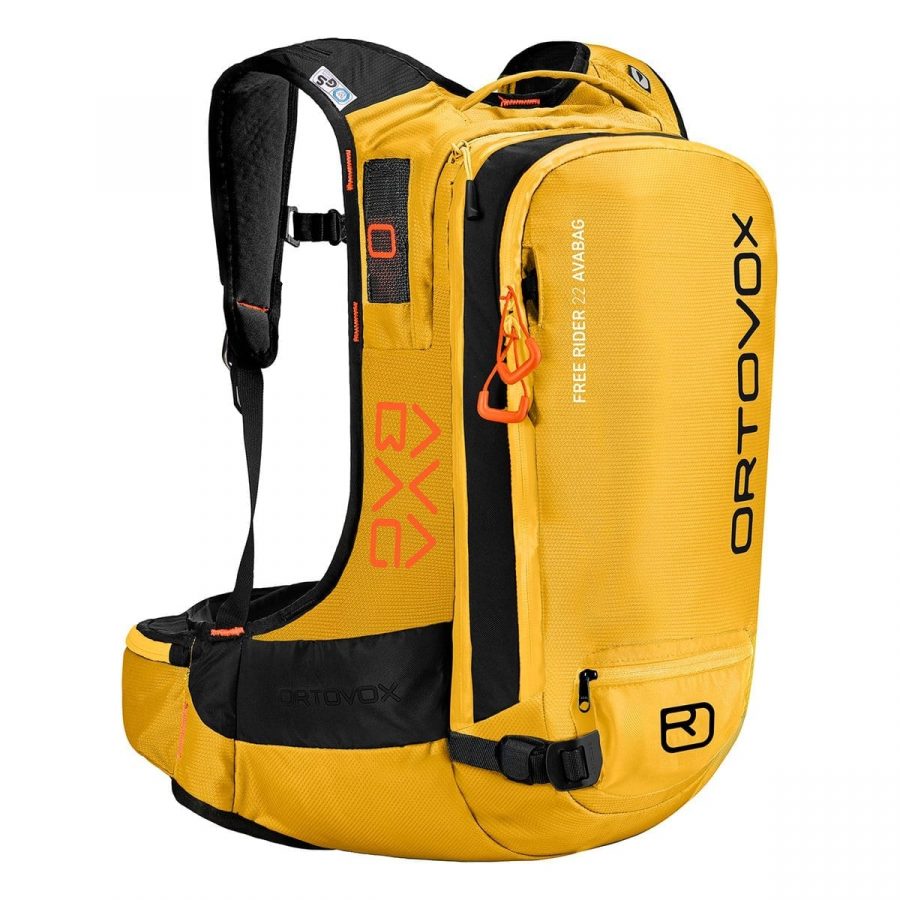

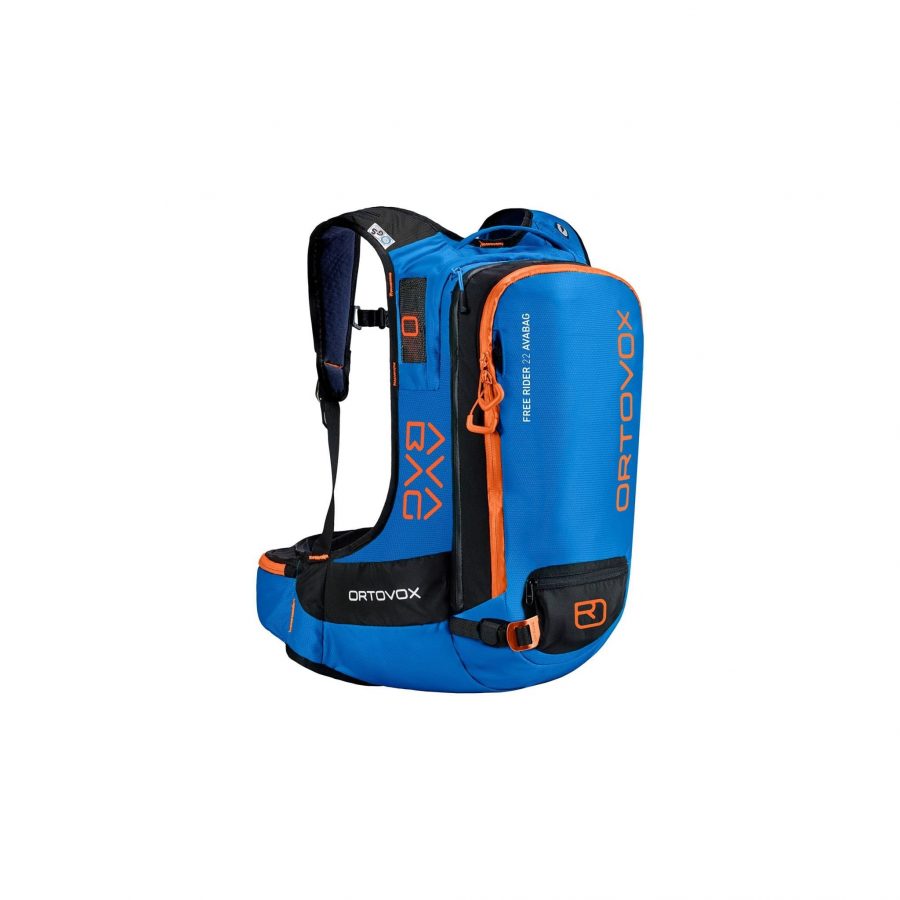

Ortovox Free Rider 22 Avabag Kit

Ortovox Free Rider 22 AVABAG Kit

The redevelopment of the SPS Flex back protector is the main focus of the Ortovox Free Rider 22 AVABAG, This offers the highest level of comfort and protection whilst out in the mountains. Ortovox has completely redesigned the Free Riders inside an airbag system in order to produce 22 litres of fully-utilizable volume around the AVABAG unit.

Videos

Free Rider Avabag Avalanche Backpack

Avabag Deployment

Installing the Avabag Unit

Setting your handle correctly

What's Included:

• Free Rider 22 AVABAG Backpack
• AVABAG Airbag Unit
• Rearming tool
• Instructions (Multiple Languages)

Ideal For:

The Ortovox Free Rider 22 Avabag is ideal for Free Riding Off-Piste Skiers or Boarders looking for something lightweight but hard-wearing that will carry all the necessary gear whilst ensuring total freedom of movement.

The Fit:

With a neoprene wide hip belt, the Ortovox Free Rider 22 avabag is a close-fitting and unobtrusive pack that hugs the body, ideal for fast sports.

This backpack is built to incorporate a TÜV certified SPS back protector system to reduce extra bulk and keep the wearer protected, whatever speed they are travelling at. This system comprises of five superimposed layers of foam which harden on impact to absorb the force of a fall or collision.

Ortovox AVABAG Activation:

When wearing your Ortovox Free Rider 22 Avabag system you must make sure that all of your straps are securely fastened and the Activation handle is adjusted to the correct height.

1. Correctly Installing the Avabag system: Ensure that the AVABAG system has been installed correctly. The activation cable with the silver ball must be able to pass through the feed channel with no restrictions and the AVABAG balloon must be correctly folded.

2. Correctly Mounting the Activation Handle: The Silver ball on the activation cable must be easily visible in one of the two settings, so L or S. The position slider must be firmly attached to the activation handle. The Guide bar on the activation handle must be inserted into the feed channel for the appropriate setting.

Short Grip Length (S)

Long Grip Length (L)

3. Checking the Activation Mechanism: Insert the unthreaded side (smooth surface) of the AVABAG re-arming tool without force into the cartridge bushing if you can insert the re-arming tool right up to the stop. The AVABAG system is armed and ready to activate. if the re-arming tool cannot be completely inserted, you must re-arm the system.

4. Correctly Attaching the Avabag Cartridge: Screw the AVABAG cartridge into the cartridge bushing right up to the stop so that the sealing ring can no longer be seen on the AVABAG cartridge, Fasten the backpack orange cartridge clip to keep in place.

5. How To Wear The Backpack Correctly: Fasten the leg safety. to do this, thread the hip strap through the coloured loop on the leg safety strap. Fasten both buckles on the hip and chest straps one after the other and ensure that they are properly locked into place.

6. Activating The AVABAG Avalanche Unit: In the case of an avalanche, pull abruptly and as firmly as possible on the activation handle to activate the avabag avalanche airbag and inflate the avabag balloon!

Please see the video of Inflation and Deflation on the right-hand side.

Ortovox AVABAG Unit:

Thanks to the innovative processing system which requires no sewing or additional sealing, and a drastically reduced venturi unit, the Ortovox Avabag is one of the lightest airbag systems in the world. Weighing only 690g, the system combines an incredible lightweight stripped-down design with the highest levels of reliability.

The Ortovox Avabag Unit is removable so that you can insert it into any Ortovox Avabag Branded Backpack. The Alpride E1 Airbagsalso offer this removable airbag function.

The Ortovox Avabag unit will allow you to run multiple tests and practices without using your canister, this is due to the Ortovox Rearming Testing Tool.

Canister Compatibility:

You can only use the Ortovox Avabag Carbon Cartridge within the Ortovox AVABAG backpacks, no other branded canisters can be used.

Ortovox Free Rider 22 Inside (Interior):

• This pack has a 22 Litre capacity which provides plenty of room for stowing your essentials such as a cushioned google case, shovel, probe and hydration system.
• The smaller top compartment offers space for all valuables, cameras or even smaller items of clothing such as gloves or glasses.
• A Dedicated Avalanche Safety Compartment has been added to the front of the pack for quick access to your Avalanche shovel and probe in an emergency. We recommend combing this Free Rider with the lightweight Ortovov Diract Voice Light Set which includes the Ortovox Diract Voice, Pro Light Shovel and 240 Alu Light Probe.
• Front and back access has been integrated into the Ortovox Free Rider 22 so you can access all your safety equipment as quick as possible.
• The standard for Ortovox, an Emergency Card has been added to the features so when an avalanche occurs it makes it easy to extract information of the victim.
• Ortovox has integrated Bright Colours into the Free Rider 22 to make searching for your emergency equipment easier.

Ortovox Free Rider 22 Outside (Exterior):

• The Ortovox Free Rider 22L contains TÜV-tested Spine Protection System (SPS) that offers optimum back protection at its best.
• Flexible carrying Fasteners allow you to Carry Snowboard or Snowshoes on the front of your bag.
• Wide and comfortable Wide Hip belts offer an optimal body-hugging fit, even when in motion.
• A safety whistle is attached to the chest straps to draw attention in the case of an avalanche.
• Shovel, ice axe's or hiking poles can be attached to the front of your bag allowing more room to stow extra kit inside your bag.
• D-skifix offers plenty of wear comfort.
• Ortovox Backpack - Features Glossary

Back System

SPS-Flex Back System

Size Guide:

To determine your back length, use a tape measure to measure yourself from the top of your hip bone to the very top of your back just before the neck. Use the size guide image in the image gallery to calculate your size.

Back Length: Regular (42 - 50 cm)

Ortovox Free Rider 22 Avabag Features:

• Safety compartment: Access to the compartment is marked with the red zipper pullers. Probe and shaft receiver are marked with icons. Place the shovel blade with the sharp edge up.
• Chest strap with a signal whistle: Quickly draw attention in emergency situations.
• Water-resistant zipper: Repelling moisture for secure and dry contents.
• Hydration system compatible: Push drink bladder into the slot on the carry system interior and secure with a strap and flat-front buckle. Lead the tube through the outlet by the right shoulder strap and fix it with the rubber band.
• Bright inside: Light Colours inside make it easier to find your avalanche safety equipment.
• SPS Flex Back Protector: TUV-Certified protector made from visco-elastic foam that adapts to the body and remains flexible even in the cold
• Ice Axe Attachment: Place the pick of the axe into the icon compartment and fix it by closing the straps. Then attach the shaft by using the elastic cords, hidden in the two small compartments near the foremost zipper.
• D-Skifix: A fast and safe diagonal ski fastener that offers plenty of wear comfort.
• Snowboard and Snowshoe attachment: Connect the lower straps with the metal nose and the small lop above the icon compartment. The upper part can be found in the compartment above the left shoulder strap. Disconnect the metal half-moon hook and feed it through the loop by the right shoulder strap. Fit the board / Snowshoes and close the buckle.
• Access to main compartment (Front): Quick access to emergency equipment / Accessories through the Front.
• Illustration of Alpine Emergency Signals: Print (inside) shows you signals for emergencies.
• Wide Hip Belt: Wide and elasticated, for an optimal body-hugging fit, even when in motion.
• Helmet Net: Fixed in a zipped compartment, optimized fastening.
• Separate Safety Compartment : Quick access to emergency equipment.
• Material: Nylon D ball shadow.
• Release Grip: Height adjustable.
• Locking Clasp: Provides the highest possible safety and ease of use.
• Safety Leg Strap: for the highest possible safety in the event of an avalanche.
• Emergency Card: Quick access to emergency details if stuck in an avalanche situation.

Ortovox Free Rider 22 Avabag Tech Spec:

• Usable volume with integrated AVABAG unit: 22 litres
• Weight Backpack: 1440 g
• Weight Backpack (inc AVABAG unit + Cartridge: 2440 g
• Weight AVABAG Unit: 690 g
• Weight Activation Unit Carbon: 310 g
• Back Length: Regular (42 - 50 cm)
• W x L x H (Width x Length x Height): 29 x 55 x 19 cm
• Abdomen Curcumference: 89 - 135 cm
