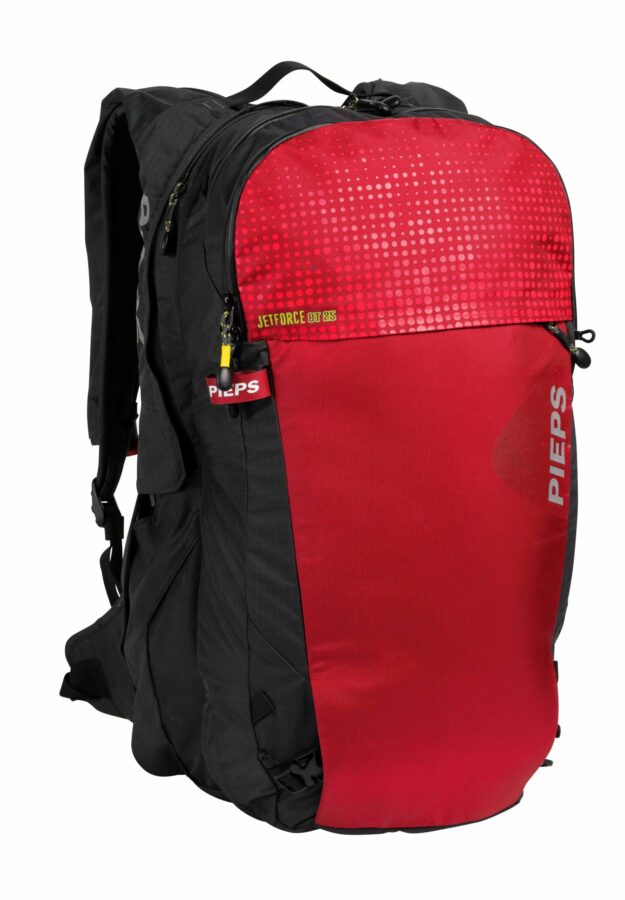

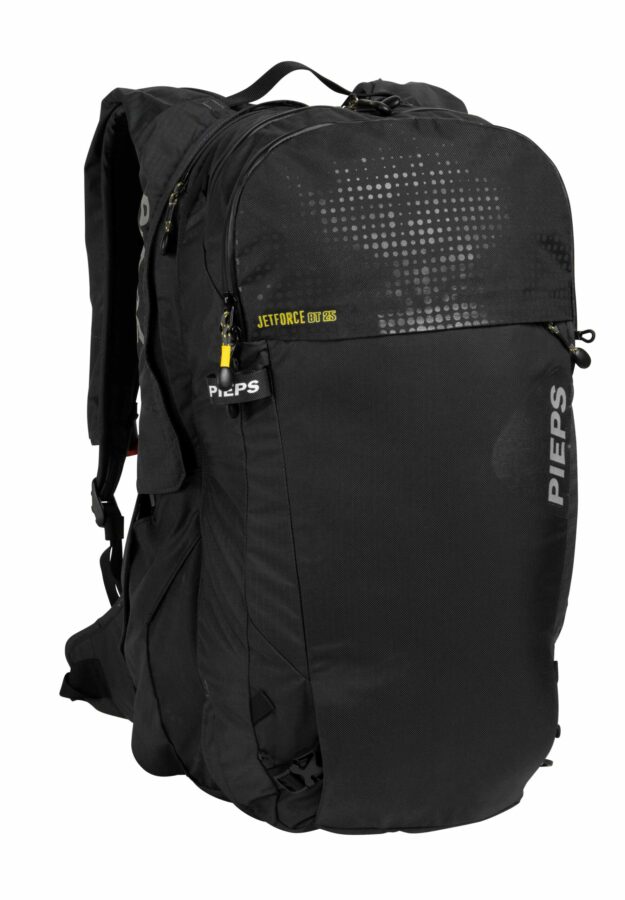

The Pieps Jetforce BT 25 Airbag has won awards for its easy handling and low-cost deployment that can be used repeatedly. Jetforce is the result of the collaboration between Pieps and Black Diamond, two leading innovators in snow safety.
The Pieps Jetforce BT 25 Airbag provides you with a volume of up to 25 Litres to fit all the necessary gear you need on a backcountry tour.
The Pieps and Black Diamond Jetforce host all of the same features and functionality, find out more about the Jetforce 2.0 Technology.

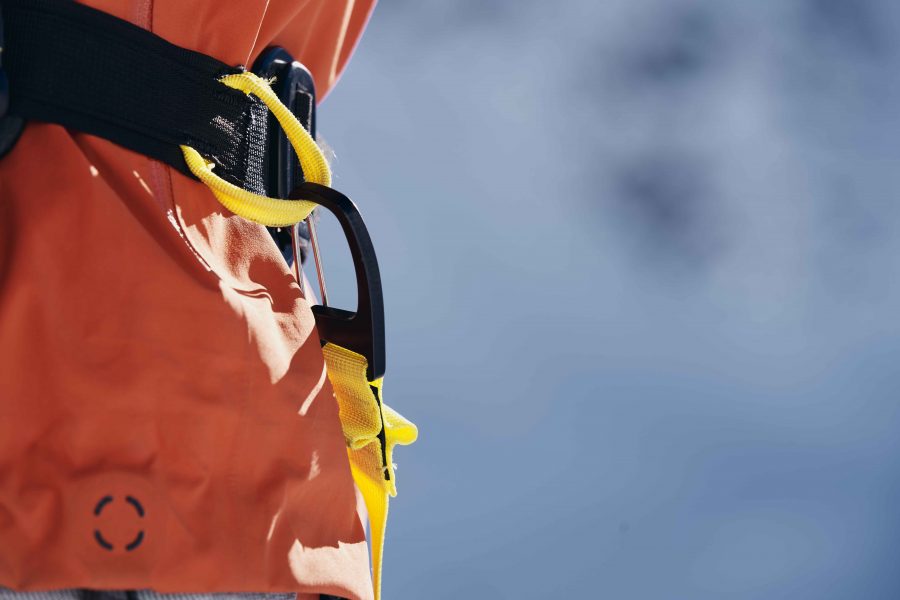

The BT 25 boasts ski and a specific avy tools pocket, helmet holder and single ice-axe attachment for securing your gear. It also includes a glacier loop on the waistline belt to let you clip this pack to your harness during a crevasse rescue.
Bluetooth connectivity allows for easy software and system updates via the Pieps app on your smartphone. You can also update your Pieps or Black Diamond Beacon via the same app.

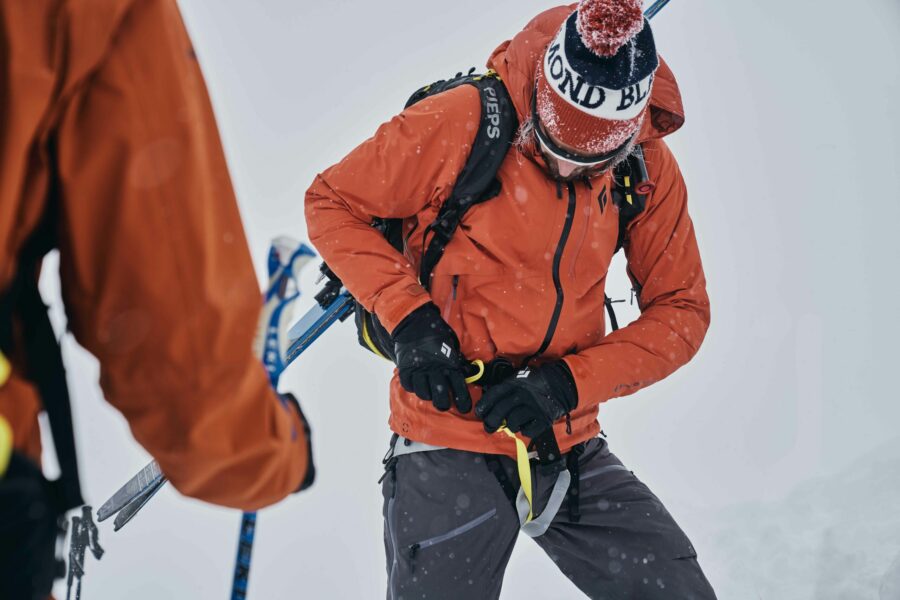

When wearing your Pieps Jetforce BT 25 Airbag make sure all straps securely fastened and the system is successfully armed with the LED is showing a pulsing green light. The airbag can now be deployed.

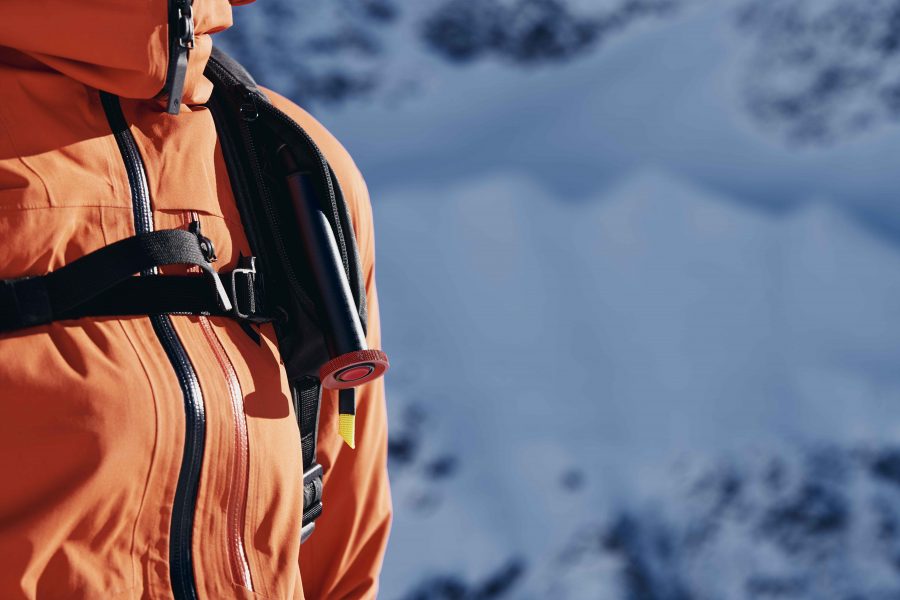

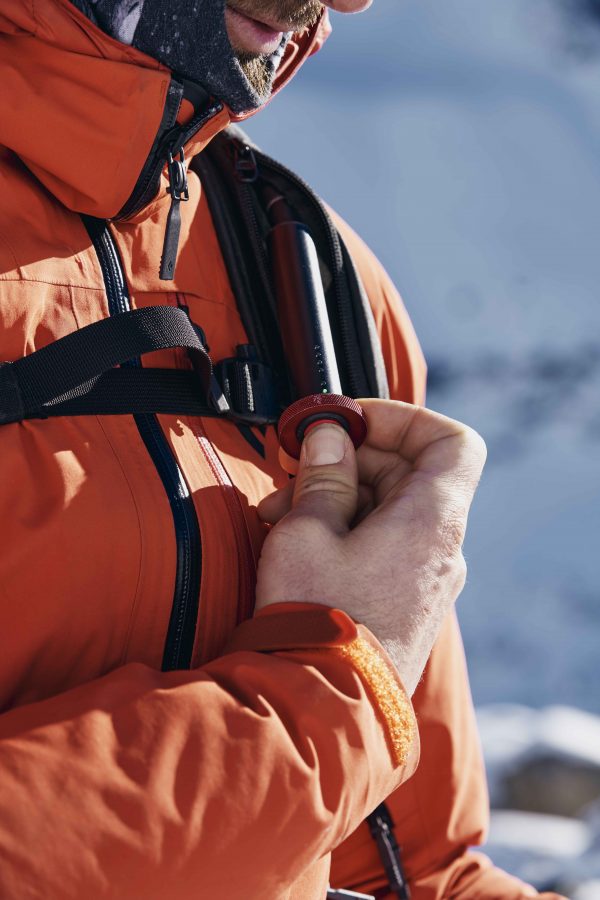

Grasp the Deployment Handle and firmly pull downwards to open the Release Flap that covers the airbag and turn the fan on.
The airbag will begin to Deploy Immediately. The fan will run at Full Power For 9 Seconds, followed by lower speed operation and Short Refilling Bursts for 3 minutes.
The airbag will deflate after 3 minutes and then automatically switch back to armed mode.
To interrupt the inflation/deflation process after the initial 9 second deployment period and return to armed mode, Press and hold the red power button for approximately 5 seconds.
Jetforce Airbag Filling Time
Fan timing is controlled by the electronics, here is how it cycles:
0-9 seconds -Mandatory Fill: During the first 3.5 seconds, the airbag fills 100%. For the next 5.5 seconds, the system continues to run at full speed for safety redundancy.
10-60 seconds -Active Performance: The system pulses between full speed and 50% speed. Since this is the most likely time to be carried by the avalanche, it is most critical to maintain full volume and recover from any possible tears.
61-180 seconds -Volume Maintenance: The system has 20s stand-by intervals between 3s full speed refilling pulses. The goal is to maintain the volume to aid in visibility and meet CE timing requirements.
181 seconds - Active Deflation: After 3 total minutes, the bag will automatically deflate. If partially or completely buried, this has the potential to create a large volume of air for breathing and/or extraction. If unburied, this simply helps repack the airbag quicker.
The right size for any trip; from a 1-and-done lap to a full day of backcountry skiing, the Pieps JetForce BT 25 airbag carries your essentials and features a fan-inflated airbag for added safety.

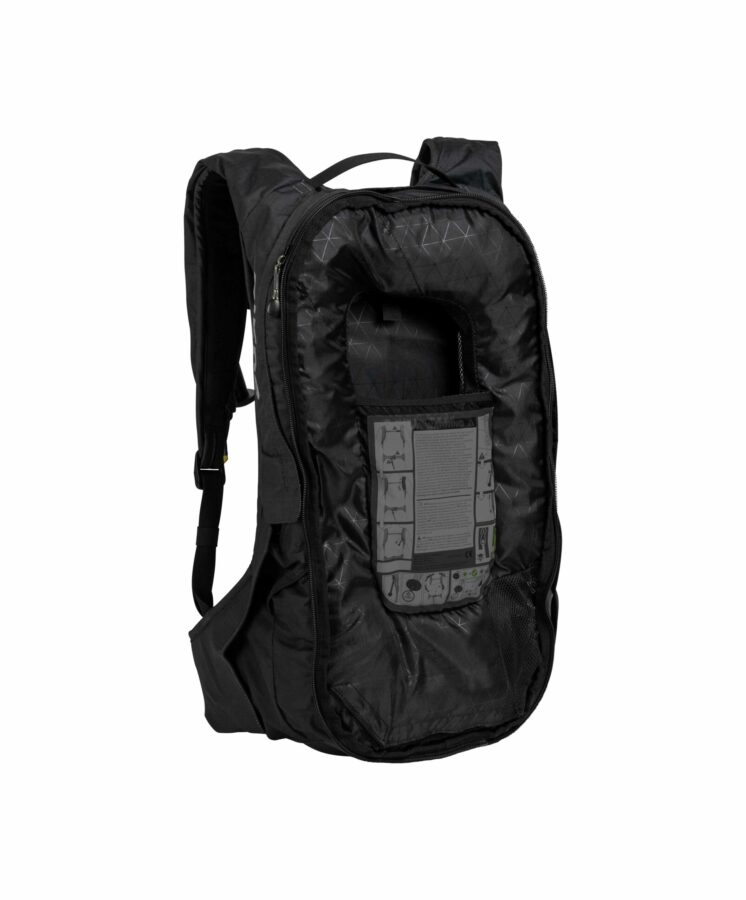

The Pieps Jetforce BT 25 Airbag provides an ample amount of internal space to store avalanche safety equipment.

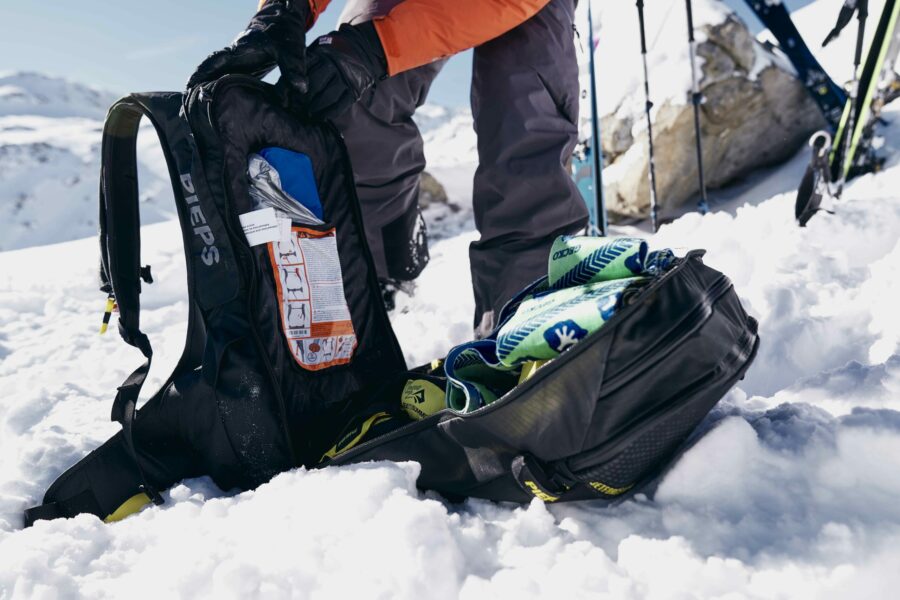

The main compartment can be accessed from the back panel, making it accessible while carrying your ski's on the pack.
Convenient accessories pocket within the avy tools section.
Pieps BT 25 Booster Outside (Exterior):
Tuck-Away Diagonal Ski Carry (Airbag can be inflated even if skis are still attached to the bag).

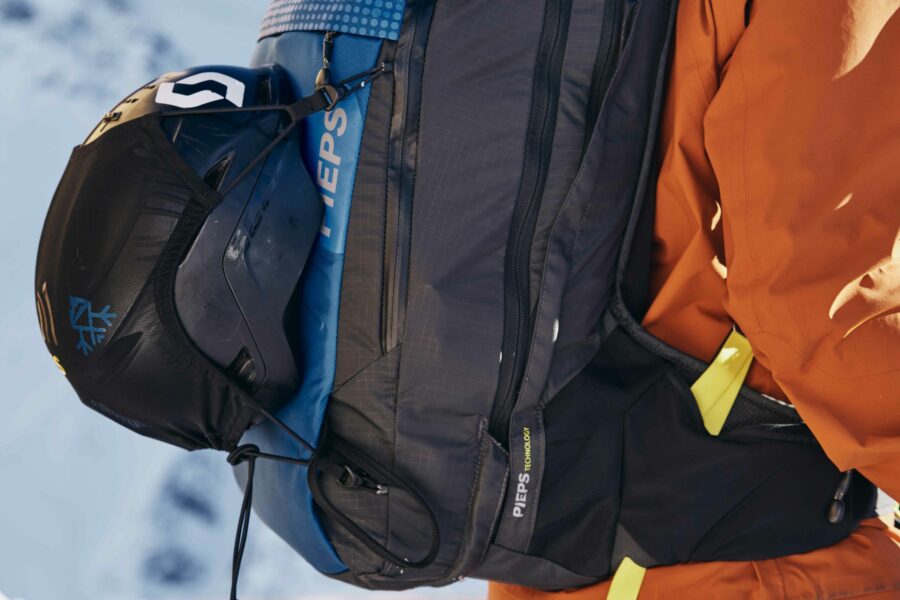

HiLo helmet holder carries equipment at your convenience without blocking the deployable Airbag.
Compression Straps with non-icing PIEPS-buckles.
Single Ice Axe Attachment.
Waistline pocket for easy-to-reach supplies or valuables.
To measure your pack size; get someone to measure you from the lower back to just below the neck where the spine has a lump which can often be seen or felt. Use the size guide image on the product to calculate your size :
Volume: 25 Litres
Weight: 2980 g
If your looking for a pack with larger volume for touring or lower volume for freeriding then we also stock the Pieps BT 35 & BT 25.
The Advantages Of Jetforce Airbag:
Easy air travel, little to no restrictions on the batteries as they’re no different than laptop batteries.
As many practice deployments as you desire, battery good for 1 to 6 full inflations depending on temperature and age, the battery is rechargeable.
No hassle with canisters.
Slightly lighter in weight than compressed gas offerings.
Automatic deflation cycle can possibly create airspace around the head in the event of a burial.
Specific to Black Diamond & Pieps design, airbag stuff-stows loosely after use, pack it in minutes with no folding necessary.
The fan is set to cycle on periodically during 3 minute inflation period per CE standards, this can overcome up to 7-inch tear in the fabric.
3.5 seconds for initial fill, which is as fast (or faster) than any cylinder system.
Where does the air pull from?
There are three locations that allow air to enter the fan.
The primary is the intake port located on the lower left sidewall of the pack.
The second is the entire backpanel of the pack is open cell reticulated foam that acts as both a filter and air intake.
The third is through the mesh lining of the airbag pocket itself, after the airbag has been activated.
Having three intake locations allows the system to get ample amounts of air despite any impediments like snow, clothing, or equipment.
Will the airbag be able to deploy from within the snow?
Through our experience with the AvaLung, we have done years of research to prove that the snow pack maintains large amounts of available air. We have designed the system to pull air from many locations around the pack, thereby reducing the concern that any one of these spaces could be fully blocked. Also, the fan runs about 3 times longer than needed to actually fill the bag, thereby allowing for the reduced efficiency when fully buried.
How fast is the fan?
What type of battery is used? And is there a temperature effect on the battery?
The JetForce battery is similar to the battery found in most laptop computers: a Lithium Ion. Our battery differs in one key aspect: it was engineered specifically to operate at very cold temperatures (-30C). The battery is sized to operate once at very cold temperatures even at the low end of charge levels.
How long does it take to charge the battery?
A fully depleted battery will need 8 hours for a full charge. As with all Lithium batteries, for the best battery life expectancy, we recommend the battery is maintained closer to full charge.
Is the Airbag mechanism interchangeable between Backpacks ?
The jet force is built into the backpack and is not interchangeable like the ABS system.
How long does a battery charge last?
A fully charged battery can last up to six weeks depending on use.
Can the system be turned off during deployment?
Yes, but only by intentionally pressing the power switch for 4 secs and only after the mandatory initial inflation phase.
Why does the JetForce system turn on and off during deployment?
The system cycles through multiple phases throughout deployment. Each phase is specifically tuned to optimize safety and battery life.
0-9 secs: Mandatory Fill
During the first 3.5 seconds, the airbag fills 100%. For the next 5.5 seconds, the system continues to run at full speed for safety redundancy.
10-60 secs: Active Slide Performance
The system pulses between full speed and 50% speed. Since this is the most likely time to be carried by the avalanche, it is most critical to maintain full volume and recover from any possible tears.
61-180 secs: Volume Maintenance
The system has 20s stand-by intervals between 3s full speed refilling pulses. The goal is to maintain the volume to aide in visibility and meet CE timing requirements.
181 sec: Active Deflation
After 3 total minutes, the bag will automatically deflate. If partially or completely buried, this has the potential to create a large volume of air for breathing and/or extraction. If unburied, this simply helps repack the airbag quicker.
All existing airbags only work well in ONE scenario- if you are actively churned by an avalanche. We wanted to create something that offered the potential for increased safety if the slide came down from above or if the victim got caught in a terrain trap. By deflating the airbag, JetForce has the potential to create a large air pocket in a complete burial scenario.
Easier to repack after practicing
Easier extraction of the victim after partial burial
By waiting until 3 minutes before deflation it allows the practicing user an opportunity to shut the system off before deflation in order to maintain battery life. In the event of a full burial, the time allows for the snow to set-up firmly before creating a pocket.
Why are you using a larger airbag?
Maximize the effects of inverse segregation. All avalanche airbags work on the same principle, which states that in an avalanche, larger objects will tend to rise and smaller ones will tend towards the bottom.
Increased impact protection. A larger area of balloon around your head and torso help to prevent impact.
Maintaining effective volume. By starting with a larger volume, it is easier to maintain an effective volume despite punctures or tears.
What effect does this system have on beacons?
There is a very minimal amount of interference with beacons, but only when the fan is actually running and only within very short range.
What about airline travel?
Our lithium Ion battery is very similar to those used in most laptop computers and therefore follows the same general airline regulations.
[Our experience has shown that the pack can be either checked or carried-on, but any extra batteries MUST be carried on.]
Why didn’t you incorporate the AvaLung?
While we still feel that the AvaLung is a great technology and could certainly aide airbag users, we were more concerned that having two devices on the pack’s shoulder straps would only confuse an unpracticed user. If someone wants to have both, we already offer the AvaLung II sling, which can be used with any backpack. Also, the automatic deflation has the potential to create the same amount of breathable air as the AvaLung.
What’s the status with field testing?
We have been testing this system for the last 3 years (lab & field testing). Like all BD/Pieps product, before anything is made available to the public it will have undergone rigorous testing in the lab, then in the field with in-house users, and then is released to out-of-house professionals and athletes for more field use. Intensive out-of-house field testing phase will start in earnest this winter.
